Type-W Vent

£24.00 ex VAT / pack of 50

Surecav type W vent
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily

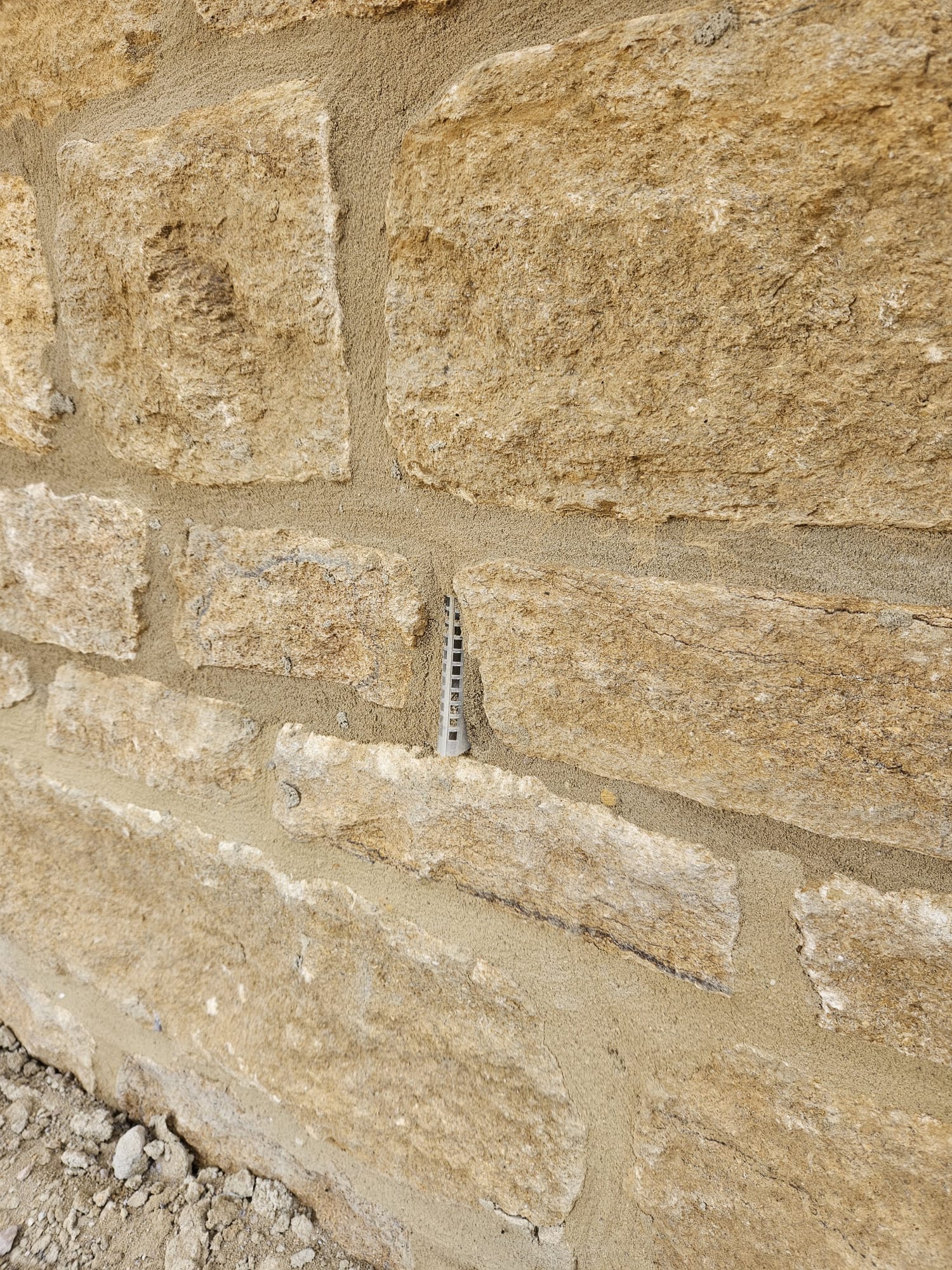

The SureCav Type W vent, providing ventilation to the cavity, avoiding moisture being installed on a stone build home
Max showing how you can not even see the vents used but they do an important job
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
Guaranteed clear, dry, vented rainscreen, BBA approved partial fill cavity
Surecav type W vent
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
The SureCav Type W vent, providing ventilation to the cavity, avoiding moisture being installed on a stone build home
Max showing how you can not even see the vents used but they do an important job
The Type W vents, keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
Guaranteed clear, dry, vented rainscreen, BBA approved partial fill cavity

Translucent Type-W Vent. 50 vents to a box.

Standard size 105/115mm x 65mm x 10mm plus lockfit wedges.

Dual-purpose perp air/weepvent. To satisfy ventilation requirements, install at
500mm centres at DPC/tray and corresponding centres at high level (e.g. under soffit).

See BBA certificate 04/4154 for more information on the ventilation requirements for SureCav.

CAVITY WIDTHS ACCOMMODATED: All – width does not affect functionality
DIMENSIONS: Type W - 105mm x 65mm x 9.5mm
TRADITIONAL CONSTRUCTION COMPATIBLE: Yes
TIMBER FRAME CONSTRUCTION COMPATIBLE: Yes
NEW WORK APPLICATIONS: Yes
AIR FLOW AT GRILLE: 320mm²
MATERIAL: Polypropylene (Translucent)
PACK SIZE
Packs of 50

£24.00 ex VAT
