SureCav 25

£15.00 ex VAT / sheet

SureCav 25. The Keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
SureCav protecting the cavity against any moisture or mortar preventing cavity bridging risks
Guaranteed clear, dry, vented rainscreen, BBA approved partial fill cavity
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity. construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
surecav product and brick wall
standing infront of SureCav, 100% recycled cavity spacer rainscreen system, behind is insulation and traditional build in a partial fill cavity. The SureCav25 and 50 are both BBA approved for use in any exposure zone, offering protection against wind-driven rain and moisture issues.
surecav product
standing infront of SureCav, 100% recycled cavity spacer rainscreen system, behind is insulation and traditional build in a partial fill cavity. The SureCav25 and 50 are both BBA approved for use in any exposure zone, offering protection against wind-driven rain and moisture issues.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Brick Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Flint Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.

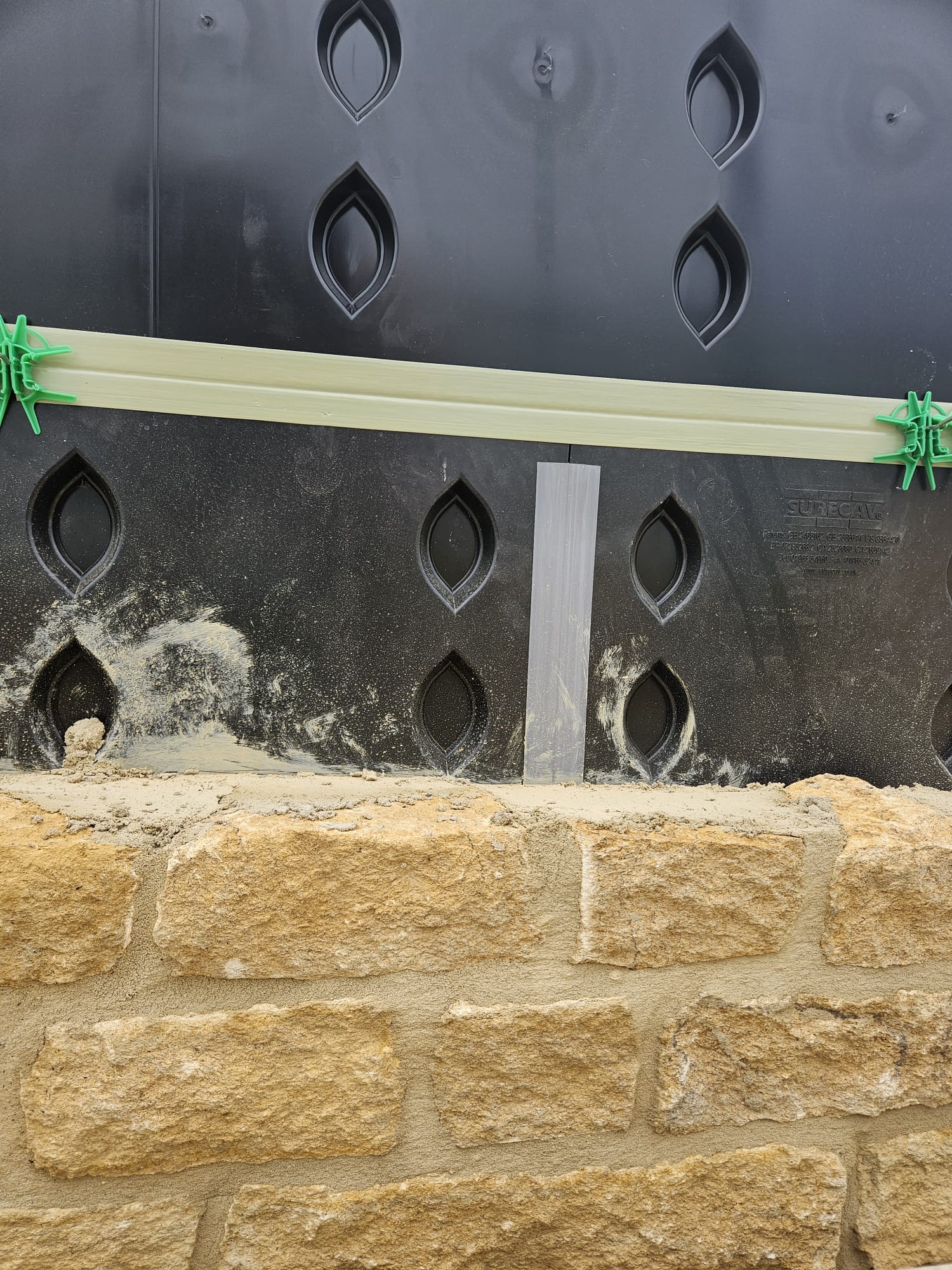

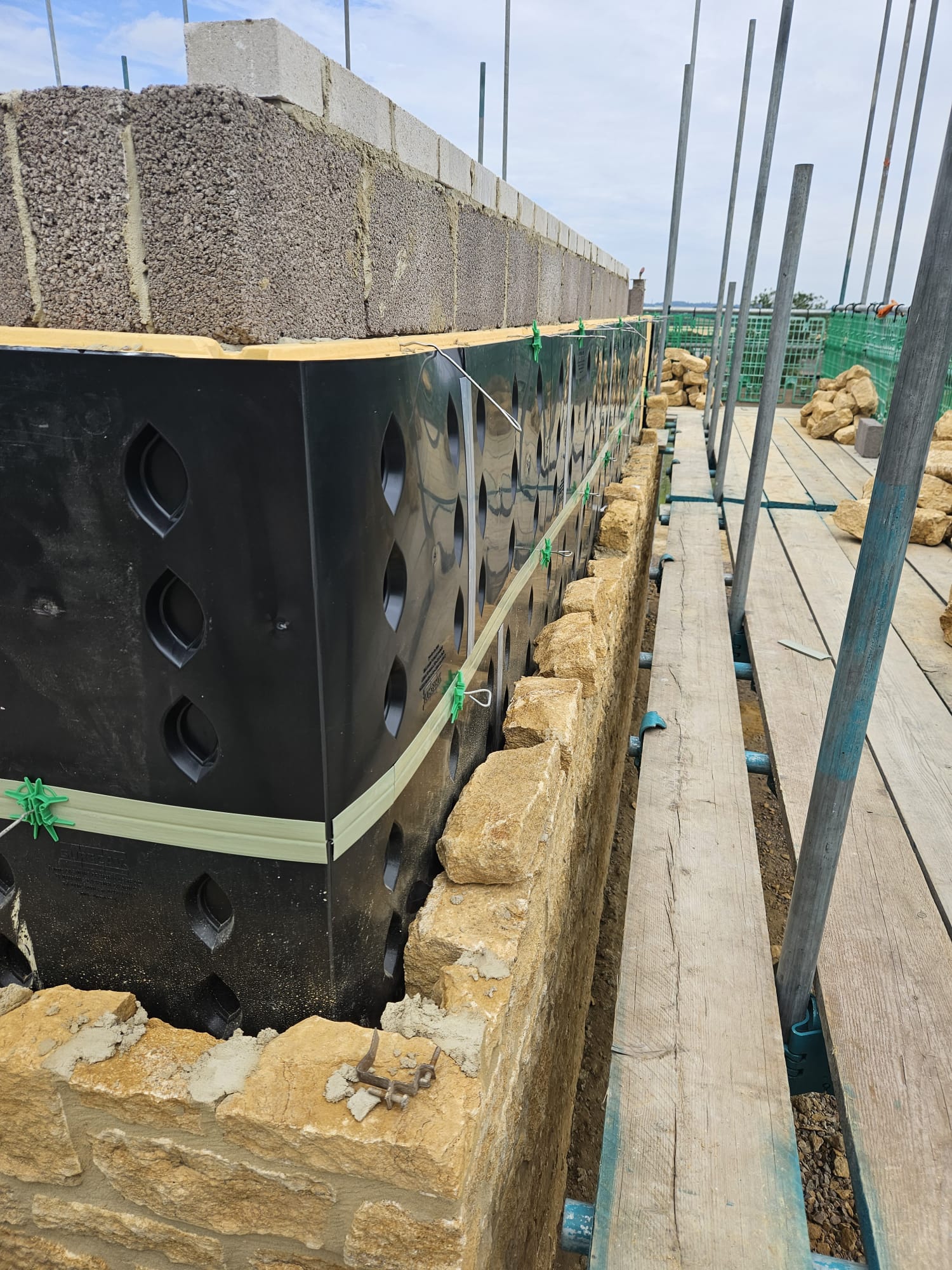

Stone layer against the SureCav BBA Approved cavity spacer partial fill rainscreen system
Bricklayer constructing a stone wall
SureCav 25. The Keeping a clear, dry, vented cavity free from any moisture. Eliminating water ingress issues and damp in homes . Used with stone and Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
Brick masonry finish with SureCav25 bba approved cavity spacer rainscreen system keeping clear, dry, vented moisture and mortar-free cavities guarenteed whilst protecting against wind-driven rain and avoiding water ingress issues easily
SureCav protecting the cavity against any moisture or mortar preventing cavity bridging risks
Guaranteed clear, dry, vented rainscreen, BBA approved partial fill cavity
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity. construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
surecav product and brick wall
standing infront of SureCav, 100% recycled cavity spacer rainscreen system, behind is insulation and traditional build in a partial fill cavity. The SureCav25 and 50 are both BBA approved for use in any exposure zone, offering protection against wind-driven rain and moisture issues.
surecav product
standing infront of SureCav, 100% recycled cavity spacer rainscreen system, behind is insulation and traditional build in a partial fill cavity. The SureCav25 and 50 are both BBA approved for use in any exposure zone, offering protection against wind-driven rain and moisture issues.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Brick Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Flint Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Masonry construction, against the SureCav BBA approved, cavity spacer, rainscreen system used with a partial fill insulation cavity.
Stone layer against the SureCav BBA Approved cavity spacer partial fill rainscreen system
Bricklayer constructing a stone wall

SureCav25 is a 25mm deep version of the popular SureCav50 Cavity Rainscreen, spacer system. It is the ONLY approved way to build a 25mm cavity. SureCav25 is BBA approved for use in any exposure zone and is widely used across the UK & Ireland. SureCav25 is a moulded, 100% recycled, polypropylene panel with spacer protrusions, forming a 25mm clear cavity and providing the perfect backing board for the stone, slate, brick and flint outer leaf. The SureCav25 protects against wind-driven rain, ensures a clear, moisture and mortar-free cavity, eliminating the risk of water ingress from dirty cavities. Can be used in any construction type, with any masonry finish. SureCav25 does away with the need of a concrete backing block behind your stonework, saving internal floor space reducing your wall width by 125mm!

IMPORTANT: Please check that you have ordered the correct depth of SureCav! (Joining strips are included)

Panel size: 1200 x 450 x 25mm

Key features

  • 25mm Approved Cavity
  • Includes joining strips
  • Ensures a clear, moisture and mortar-free cavity
  • BBA Approved for use in all exposure zones

£150.00 ex VAT

Minimum order 10 sheets | Sold in packs of 5 or 10 sheets

Find nearest stockist

Resources

View all related documents
SureCav instructional videos can be seen on our website www.surecav.co.uk

Instructional videos

Installation Videos

A series of tutorials explaining how to install SureCav

Read more
SureCav design manual to showcase all the benefits of SureCav, your easy go to guide

SureCav Brochure

All PDF Drawings BBA Certificate Brochure Certifications Design Handbook Instruction Sheets

.pdf
COPY OF THE SURECAV BBA APPROVED CERTIFICATES

BBA Certificate

All PDF Drawings BBA Certificate Certifications

.pdf
SureCav instruction sheet - the easy, simple way to install surecav on a nice neat simple a4 sheet, available to download in pdf

Installation Instruction Sheet

All PDF Drawings Block and Render Brick Flint ICF Instruction Sheets SFS Stone Timber/SIP Frame Traditional

.pdf

SureCav Pocket Guide

All PDF Drawings Brochure Design Handbook Installation Guides Instruction Sheets

.pdf
SureCav Ventilation Requirements document tells you the required ventilation you need when installing SureCav and how to achieve this

Ventilation Requirements

All PDF Drawings BBA Certificate Cavity Ventilation Certifications Ventilation Requirement

.pdf
space system diagram

Typical details for SureCav25 and Brick

All PDF Drawings Brick

.pdf

SureCav Typical Details (Stone outer leaf/block inner)

All DWG Drawings All PDF Drawings Flint Stone Traditional

.pdf

Typical details for SureCav and Timber-Frame

All PDF Drawings Block and Render Brick Flint In Use Stone Timber/SIP Frame

.pdf
SureCav25 cad profile drawings available to download

SureCav25 Profile Drawings (DWG)

All DWG Drawings

.zip

Related Products

SureCav 50 cavity spacer rainscreen system
SureCav 50

The 50mm cavity spacer system. Creates a guaranteed clear, dry, moisture and mortar free BBA approved 50mm residual cavity
Panel size: 1200mm x 450mm x 50mm

£150.00 ex VAT

Surecav washers
Washers

Washers are used when installing SureCav on timber/SIP frame buildings to create a watertight seal. 5 per panel recommended
Size: 6mm diameter hole x 10mm deep

£11.00 ex VAT

Surecav type W vent
Type-W Vent

Achieves 1500mm2 per linear meter
BBA ventilation requirement, when installed every 0.5m high and low with these vents
Size: 105/115mm x 65 x 10mm

£24.00 ex VAT

Surecav type W vent-extender
Type-W Vent Extender Duct

The extension ducts are used with
the Type W vents. The Extenders are required with an outer leaf over 100mm deep.
Size: 200/225 x 65 x 10mm

£49.00 ex VAT
